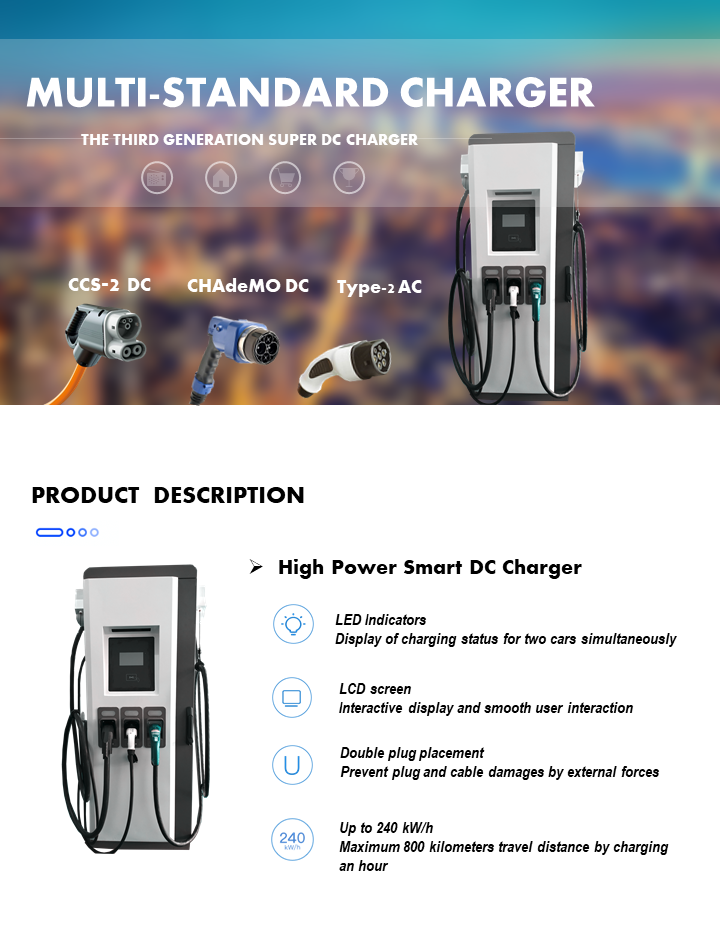

160KW MULTY STANDARD CHARGER STATION with CHAdeMO, CCS, Type 2 outlets

The series DC fast charging station is a dual DC outlets (CHAdeMO and CCS) 60 to 120kW (max up to 160kW) fast charger with an optional Type-2 AC output up to 22kW that can be configured to meet different charging needs of both European and North American customers. It supports simultaneous charging and balancer reel for advanced cable management. With user-friendly interface display and control guidance function customers can complete the charging process easily. It is IPs4

Technical Date

Power: 60-160KW
Input Voltage: AC380V÷15%
Input frequency: 50HZ
Protection class: 1P54
Rated output current: CCS2 DC 160A; CHAdeMO 150A; AC 32A
Rated output voltage: CCS2 DC 200-750V; CHAdeMO 200~500V; AC 380V
Efficiency: ≥95%
Communications interface: CAN, 485, 4G or Ethernet
User interface: LCD display touch screen
Screen size: 7" UV screen
Cable leng

Cooling method: Air cooling
Installation method: Floor mounted
Mobile payment: Support
APP control: Support
Wechat public: Support
LED indicator: Support
Emergency stop button: Support
Remote upgrade: Support
