LITHIUM ION BATTERY APPLICATION

The best lithium ion deep cycle battery solution is the one that works for you.

Why are there EV Adapters?

This usually happened in Mode 3 charging, Because currently there are main two standards in the world SAE J1772(USA) and IEC 62196-2(Europe), when our car charging inlet standard is different from our local charging station connector standard, we will encounter trouble, because they are two different ports and incompatible completely , then EV Adapter is born to solve this problem.

Technical Data:

Standards: IEC 62196-2 type 2 to type 1 J1772 adapter
Rated Voltage: 110V - 250V
Operating Voltage: 110V - 250V
Current: 16A/32A
Customized: ok
Warranty: 24 month
Certificate: TUV - CE
IP Grade: IP 54
Withstand Voltage: 2000V
Operating Temperature: -25ºC~50ºC
Size: 15cm*6cm*6cm

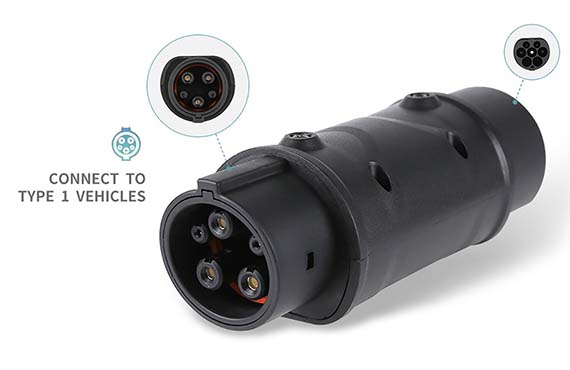

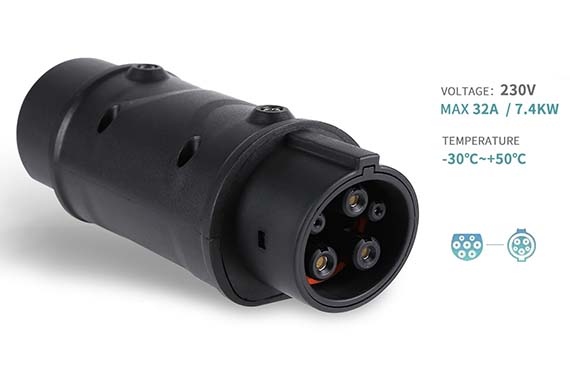

How to use type 2 to type 1 adapter?

1.Plug in the Type 2 end of the adapter to the station charging port.
2.Plug in the Type 1 end of the adapter to the Type 1 car charging port.
3.After the adapter has clicked in place you are ready for the charge.
4.Disconnect the vehicle side first and then the charging station side.
5.Remove the adapter from the charging station when not in use.

DETAILS

Technical Data:

Standards: IEC 62196-2 type 2 to type 1 J1772 adapter

Rated Voltage: 110V - 250V

Operating Voltage: 110V - 250V

Current: 16A/32A

Customized: ok

Warranty: 24 month

Certificate: TUV - CE

IP Grade: IP 54

Withstand Voltage: 2000V

Operating Temperature: -25ºC~50ºC

Size: 15cm*6cm*6cm
