LITHIUM ION BATTERY APPLICATION

The best lithium ion deep cycle battery solution is the one that works for you.

send your inquiry

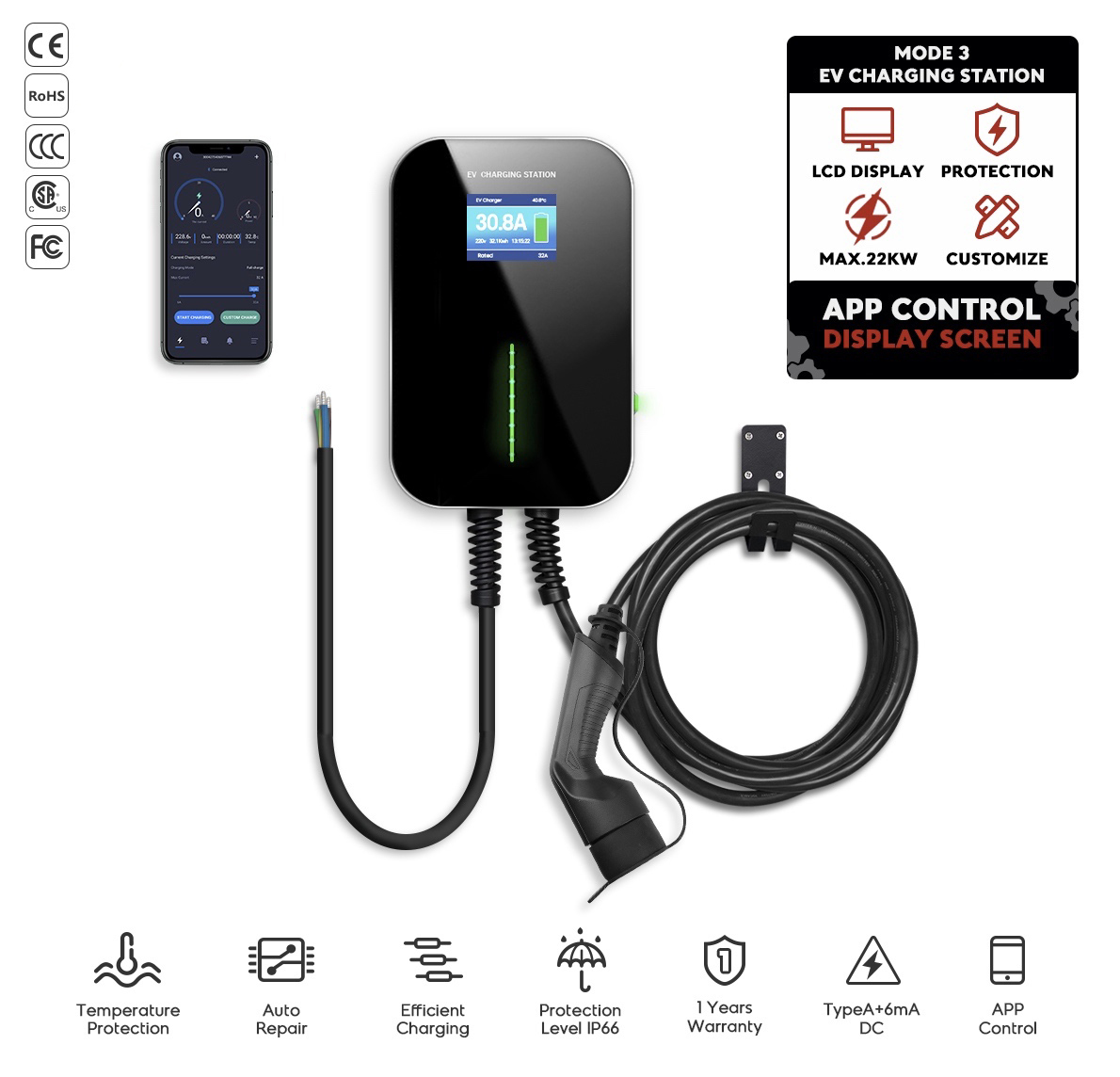

APP charging wallbox

charging parameters can be set directly through APP.
It supports both iOS and Android systems.
It's powerful and easy to operate. This APP wallbox can be connected to the device via bluetooth.
Charging records can be exported and the system can be remotely updated.
This APP wallbox can be installed on the wall or used with a pillar. The installation is easy and convenient.
Its working voltage ranges from 110V to 400V (±1

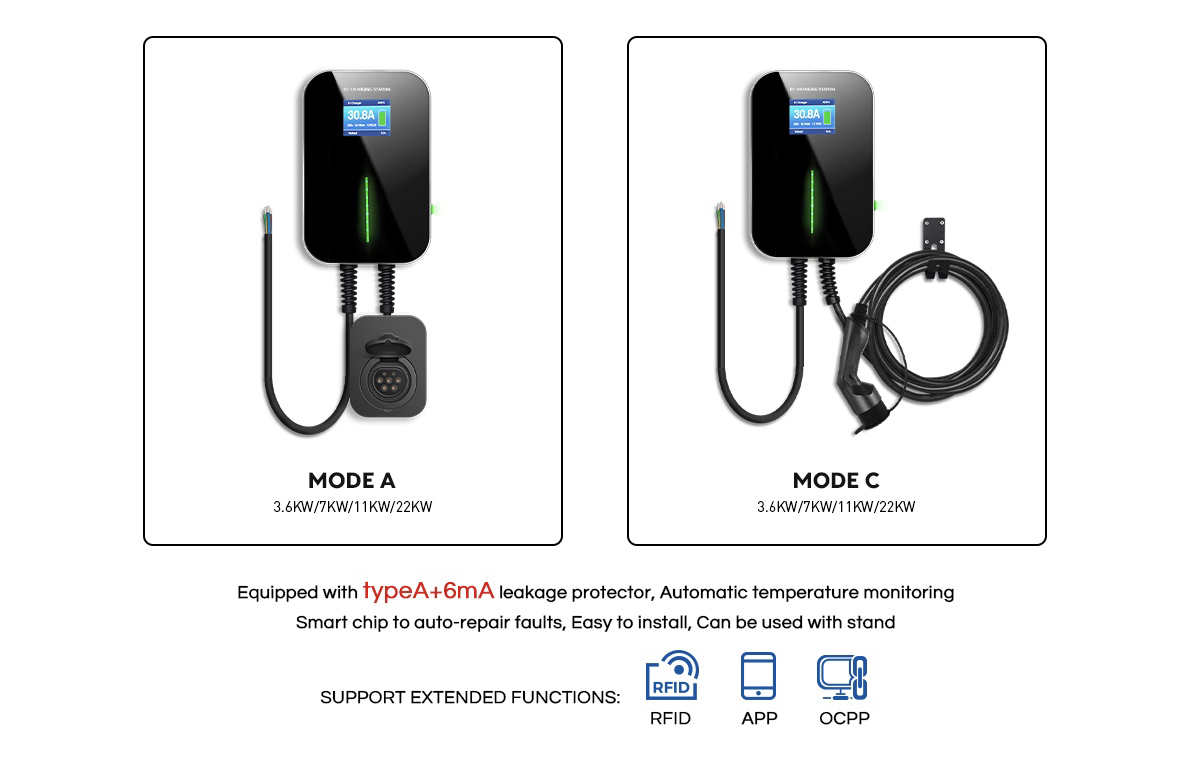

IP67 EV Charger(16A 32A 3.6kW 7.2kW 11kW 22kW)with 20ft SAE J1772 & IEC 62196-2 Plug
This is a basic wall-mount charger and suitable for home use. It is easy to install, stable in performance, and has a complete protection mechanism. The LCD display can show the detailed charging status. The charger can be used with stand.
Lead_Time:15 Days
shipping:Express delivery
Current:16A , 32A
Power:3.6kW, 7.2kW,11kW, 22kW

Technical Data

Input Voltage/Output voltage 100V /250V /440V (Three Phase)
Input frequency 47~63Hz
Max. output power 7.6kW/22kW(three phase)
Max. output current 32A
Charging interface type IEC 62196-2, SAE J1772
Working Environment
Protection degree IP67
Environment temperature -40℃ ~ +80℃
Relative humidity 0-95% non-condensing
Maximum altitude <2000m

DETAILS

Technical Data

Input Voltage/Output voltage 100V /250V /440V (Three Phase)

Input frequency 47~63Hz

Max. output power 7.6kW/22kW(three phase)

Max. output current 32A

Charging interface type IEC 62196-2, SAE J1772

Working Environment

Protection degree IP67

Environment temperature -40℃ ~ +80℃

Relative humidity 0-95% non-condensing

Maximum altitude <2000m

Cooling Natural air cooling

Standby power consumption <8W

Function and Accessory

Ethernet/WIFI/4G/Bluetooth No/Yes/Opt/Yes

LCD 3.5-inch color display

RCD Type A / Type A+ 6mA

LED Indicator light Yes

Intelligent power adjustment Yes

RFID Opt

APP     Yes

Certificate

CE, FCC, ROHS, CCC, CSA, IK10, IP67
