EV Charging Gun Overview

EV Charging Gun another name Mode 3 EV charging cable types. Mainly for Europe market, it needs to be used with a Mode A EV charger. It mainly have two types, Type 1 to Type 2 and Type 2 to Type 2. The cable can be straight or spring. EV charging gun specifications, generally the length is 5m by default. It passed CE, TUV, CCC, ROHS etc certifications. Handwe EV Charging Gun are safe with reliable quality and perfect performance.

EV Cable (32A 3 Phase 22kW) with 16ft/5m Type 2 Female to Male Extension Cable

Products Model:HW2T232A3
Working Current: 32A 3Phase
Working Voltage: 380V AC
Certificates: CE，UL
Cable Length: Free End, 3m(9.8ft), 5m(16.4ft) Or Customized

Rated current: 32A
Working voltage: 440V AC
Insulation resistance: >500M Ω
Terminal temperature rise: <50K
Withstand voltage: 2500V
Contact impedance: 0.5m Ω Max
Mechanical life: plug in/out > 20000 times
Waterproof Protection degree: IP67
Maximum altitude: <2000m
Environment temperature: -40℃ ~ +75℃

Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
Contact Pin: Copper alloy, silver or nickel plating
Sealing gasket: rubber or silicon rubber
Certificate: TUV UL CE FCC ROHS IK10 CCC

DETAILS

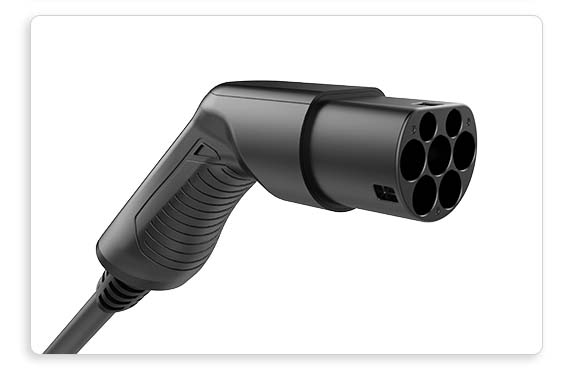

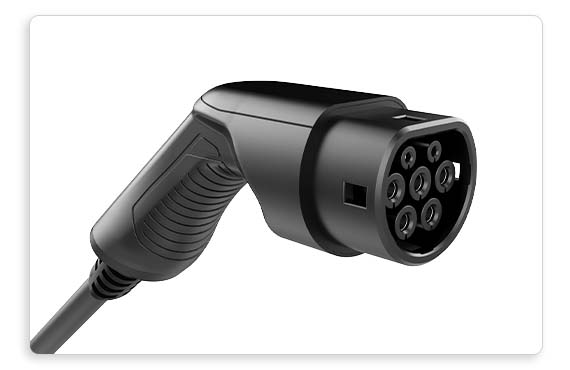

EV PLUG

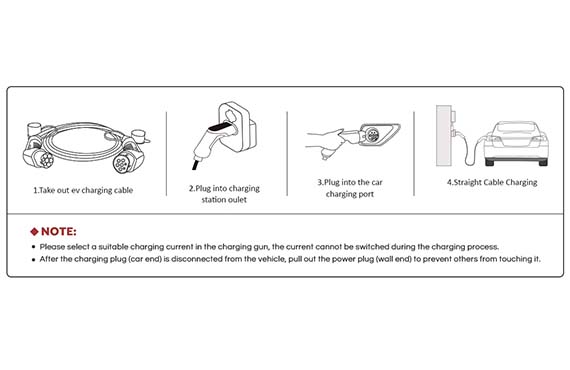

Instructions for use

Self-cleaning function on pins

Unique integrated design, stronger

Temperature monitoring on plugs (patented)

Better conductivity and higher energy transmissi efficiencyon
