Lithium Iron Phosphate Power Station

HW1500 1500w portable power station is a rack-mounted lithium iron phosphate(LiFePO4 battery) power station ESS (Energy Storage System). It’s an all-in-one portable power station for outdoors, tailgating, power outages, medical devices and disaster relief, etc, as well as off grid power supply and home emergency power supply when electricity cut.

1500w Portable Power Station HW1500

HW1500 integrates AC/DC chargers, solar MPPT charger, LiFePO4 battery, AC/DC bidirectional inverter and DC output outlets, like USB type-C, USB-A. The AC outlets output from 1500W pure sine wave inverter are just like the public grid. It powers your TV, fan, lamp and other household appliances. And your laptop, tablet, smart phone, etc can be powered by the DC outlets. It can be charged by built-in AC/DC charger when you at home and solar panel when you enjoy outdoor.

Powerstation 1500 Watt

1500w portable power station with separated power conversion box (AC-DC, DC-AC, DC-DC) and scalable battery boxes, the battery capacity could be customized as various customer needs. The two boxes have standard 2U (88mm) height and it’s plug and play for standard rack cabinet.

1500w Typical Applications

Emergency Power– This includes emergency charging of electronic devices such as laptops, smartphones and tablets during power outages, as well as powering common household appliances such as light bulbs, washing machines, fans and televisions. Off-grid Power– The off-grid living comprises the charging requirements for RV and campsite equipment such as microwave ovens, refrigerators, campsites, electrical cooking equipment, etc.

DETAILS

Data Sheet

Features List

Item		Spec
Model		HW1500	1.5kWh Portable Solar Energy
Shell Material		Plastic + Alloy
Casing Color		silver black
Battery Capacity		1536Wh (51.2V 30Ah)
Battery Type		LiFePO4	Lithium Iron Phosphate
Battery Cell		IFR32700-3.2V-6Ah	16S5P, 80 cells
DC Input	Solar PV	12V-50V 10A, 400W Max
	AC/DC	1000W Max	100V/110V OR 220V/230V
	Car Port	12V-24V 10A, 240W Max
AC Output	Power	1500W (4x AC Outlets)
	Wave Form	Pure Sine Wave
	Output Voltage	100V/110V OR 220V/230V	60Hz /50Hz
AC Output	3x USB-A	5V/3A, 9V/2A, 18W Max
AC Output	1x USB-C PD	5V/9V/12V/15V/3A, 20V/5A, 100W Max
Net Weight		14.5kg	32lbs
Dimensions		L320xW230xH260mm	L12.6W9.06H10.23"
Working Temperature		0 ~ 40℃
Working Humidity		0 ~ 90%
Storage Temperature		-20℃ ~ 40℃

Durable metal sheet housing , smooth and compact appearance design;
Rack-mounted, plug and play design;
2U (88mm) for power conversion box and 1.5kWh scalable battery boxes;
Internal LiFePO4 battery with high energy density, long cycle life and high safety;
LCD display shows battery capacity, charging status and inverter output;
1500W AC inverter powers various electrical devices, like hand drill, washing machine, rice cooker,
electric fan, TV, lamp, etc;
3x USB-A port charge most USB-A devices, such as smart phones, Bluetooth, wearable watches, etc;
USB Type-C port supports most USB-C devices, such as laptops, tablets, and smart phones;
Unique charging technology, support DC 12V to 50V voltage;

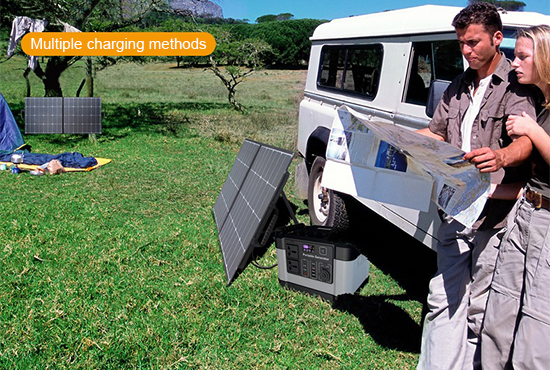

Three ways of charging from AC outlet, solar panel and car port
Highly integrated circuit design improves product safety, efficiency and functional performance;
