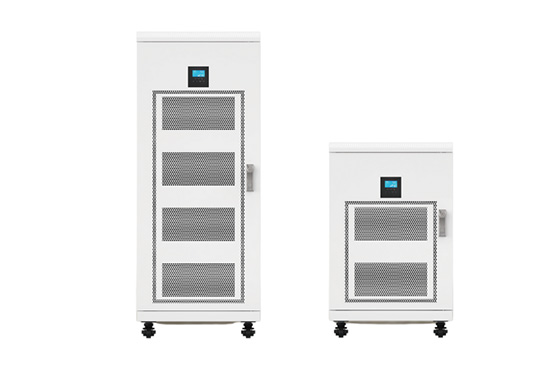

Making the most of solar power is a vital part of energy independence. 15KWh ess energy storage solution helps you store power more efficiently and supply it when you need it, reducing your dependence on utility power and the loss of power outages.
| System capacity | 10.4kwh | 15.6kwh | 20.8kwh |
| Number of parallel batteries | 2 | 3 | 4 |
| Battery pack capacity | 200Ah | 300Ah | 400Ah |
| weight | 180kg | 230kg | 280kg |
| measure | 600*600*860mm | 600*600*1130mm | 600*600*1400mm |
| Maximum input power | 5kw | ||
| Maximum output power | 5kw | ||
| Battery type | Lithium iron phosphate | ||
| protection grades | IP40 | ||
| life | ≥3500 | ||
| Maximum charging power | 5kw |
| Maximum output power | 5kw |
| DC input voltage range | 40~60V |
| DC output voltage range | 40~58V |
| number of phases | monophase |
| Rated AC input | 220V |
| Rated AC output voltage | 220V |
| rated frequency | 50/60Hz |
| Maximum PV open circuit voltage | 145VDC |
| PV operating voltage range | 60~145VDC |
| MPPT voltage range | 60~145VDC |
| Maximum output power | 4200W |
| Solar charging current | 0~80A |
| Rated voltage of battery | 51.2V | Peak discharge current | 110A |
| Working voltage of battery | 40~58.4V | Cooling mode | Natural cooling |
| Communication interface | CAN/RS232/RS485 | Waterproof grade | IP40 |
| Continuous charging current | 100A | Charging temperature | 0~60℃ |
| Continuous discharge current | 100A | Discharge temperature | -20~60℃ |
| Peak charging current | 110A | Humidity of working environment | 10%-90%RH |
